Filter Vessels
Carbon Activated Corp. provides a comprehensive selection of vapor-phase and liquid-phase adsorption vessels. Our units can be customized to meet your specific requirements upon request.

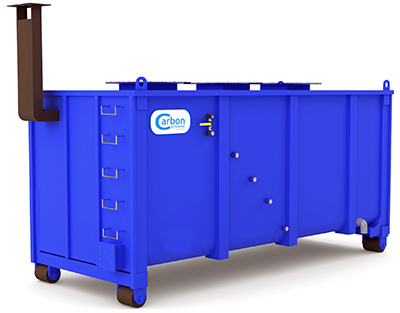

Vapor phase filter vessels:
Vapour phase adsorption vessels are designed to remove undesirable compounds such as hydrogen sulfide (H2S), siloxanes, and volatile organic compounds (VOCs). Our diverse range of vapour phase units is also suitable for filtering biogas, natural gas, soil vapour remediation, and mercury removal from waste gases. Standard specifications include:
Vapor phase filter vessels:
Vapor phase adsorption units:
| Model Number | VAP-200 | VAP-300 | VAP-500 | VAP-1000 | VAP-2000 | VAP-5K | VAP-10K | VAP-20K |
| Pounds of carbon (lbs.) | 200 | 300 | 500 | 1000 | 2000 | 5000 | 10000 | 20000 |
| Connections | 2" FNPT | 2" FNPT | 2" FNPT | 4" FNPT | 4" FNPT | 6" FNPT | 6" FNPT | 18"X18" FNPT |
| Recommended Flow rate (cfm) | 100 | 200 | 300 | 500 | 600 | 1600 | 5000 | 10000 |
| Maximum Pressure (psig) | 8 | 12 | 12 | 15 | 15 | 10 | 10 | 10 |
Liquid phase filter vessels:
Our premium liquid-phase adsorption vessels are designed to remove organic contaminants, including PFOS/PFOA and pesticides, from water. We offer a variety of models suited for numerous liquid phase applications, such as groundwater pump and treat, surface water remediation, and the purification of toxic impurities from industrial process water. Standard specifications include:
Liquid phase filter vessels:
Liquid phase filter vessels:
| Model Number | LIQ-200 | LIQ-300 | LIQ-500 | LIQ-1000 | LIQ-2000 | LIQ-10K | LIQ-20K |
| Pounds of carbon (lbs.) | 200 | 300 | 500 | 1000 | 2000 | 10000 | 20000 |
| Connections | 2" FNPT | 2" FNPT | 2" FNPT | 4" FNPT | 4" FNPT | 6" FLNG | 8" FLNG |
| Recommended Flow rate (cfm) | 10 | 20 | 30 | 50 | 95 | 500 | 750 |
| Maximum Pressure (psig) | 10 | 12 | 14 | 25 | 12 | 125 | 125 |
